Angle Mounted ABR

$251,74$282,83 price excluding tax (VAT)

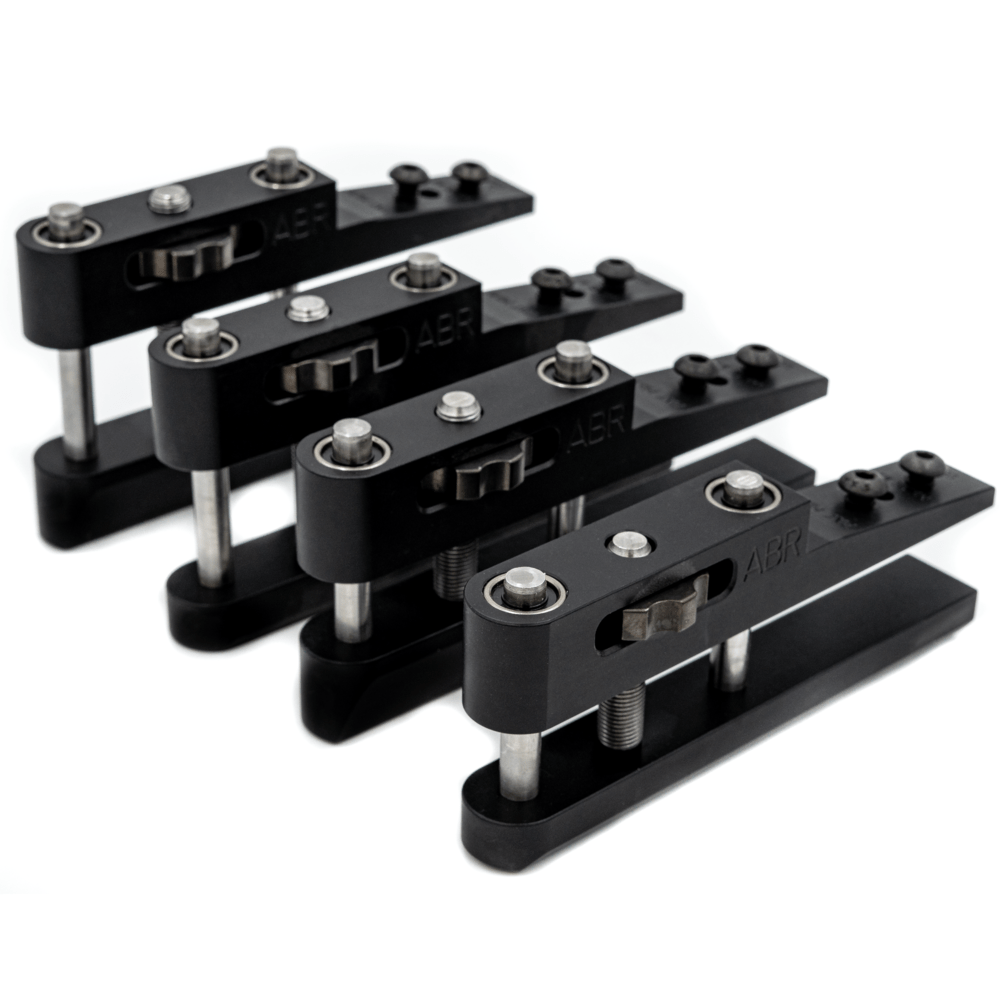

The Angle Mounted Adjustable Bag Rider (Patented) is designed to bolt directly to the bottom of the MDT stock with supplied bolts. There must be a mounting SLOT in the bottom. Two rider options are available – the V and ELR. This Patent Pending ABR provides rock solid stability, straight tracking and vertical adjustment like the other ABRs. The ELR base is .850” wide. The ‘Bag Selection’ page goes over the lower rider differences. The ABRs are CNC machined from USA made 6061 Alum, Anodized Class II Black and weighs 12-14 oz . If you do not have an MDT rear stock this ABR will not fit. There are three mounting holes providing with options to cover stock variations – select the two mounting holes farthest from each other. A 5/32 allen wrench will be needed. The stock must have a mounting slot in the bottom. Older models have two holes and will need machining to mount the 1/4” bolts. The ABR will not fit the Composite Carbine Stock

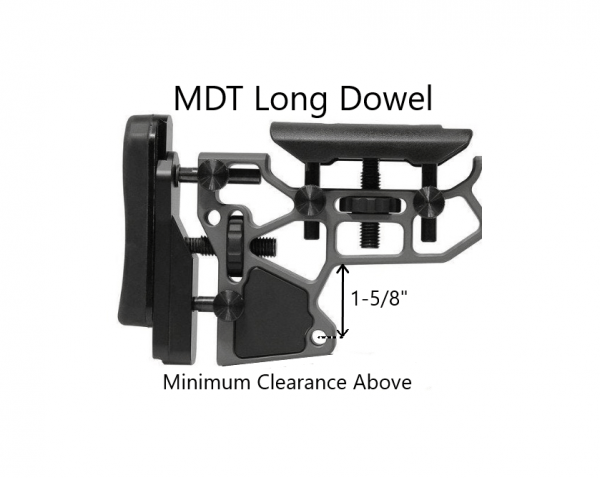

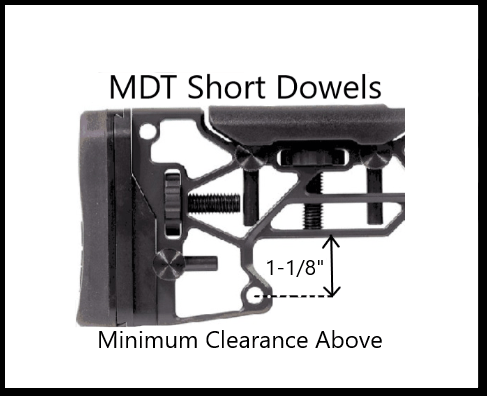

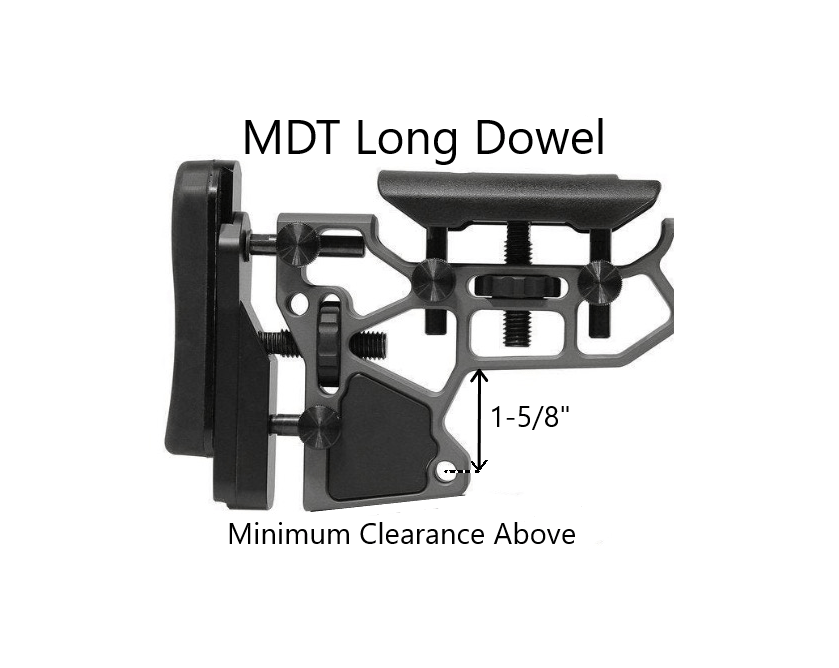

If you do not see your rear stock listed below there are Two pics to the left that show the measurements need to verify if the stock will accept the long dowels. If you are unsure please contact Adjustablebagrider@gmail.com- A picture will need to be supplied.

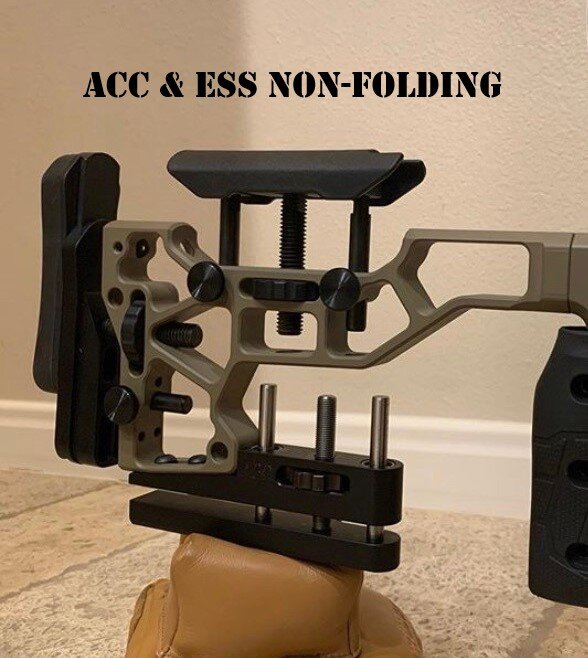

  • ACC – Non-folding -Long Dowels

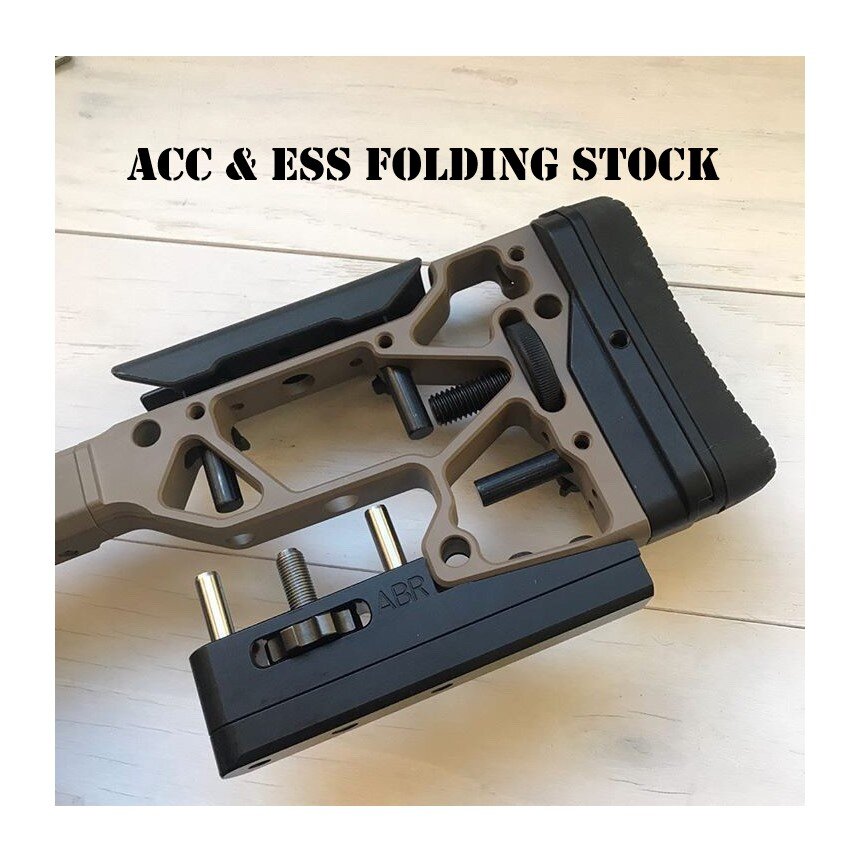

  • ACC – Folding stock- Short Dowels

  • ESS – Non-folding – Long – Dowels

  • ESS – Folding stock – Short Dowels

  • SRS – Skeleton Rifle Stock – Standard – Short Dowels

  • LSS-XL – Short Dowels

  • SCS-Lite – Long Dowels (The shorter tube length may require the Folding Stock Adapter to increase LOP- or a longer tube) 4 Hole MDT Req

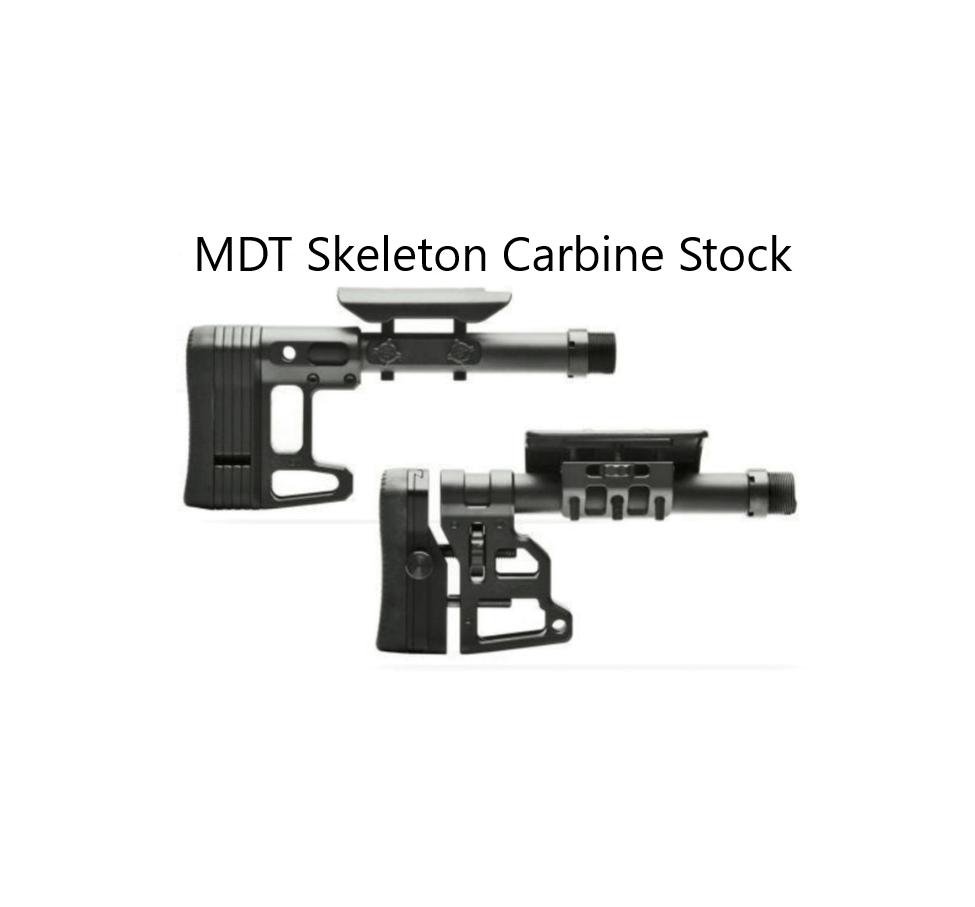

  • SCS – Skeleton Carbine Stock – Long Dowels (The shorter tube length may require the Folding Stock Adapter to increase LOP- or a longer tube)

Caliber restrictions:
.338 and smaller calibers can use the Standard dowels
.33XC and larger needs the Hardened dowels

Description

Please check the www.adjustablebagrider.com website for specific information on this model and to ensure it fits your rifle.

Ensure if it will fit your stock/chassis? Contact Long Shot Precision via their website/contactpage: they are happy to help.

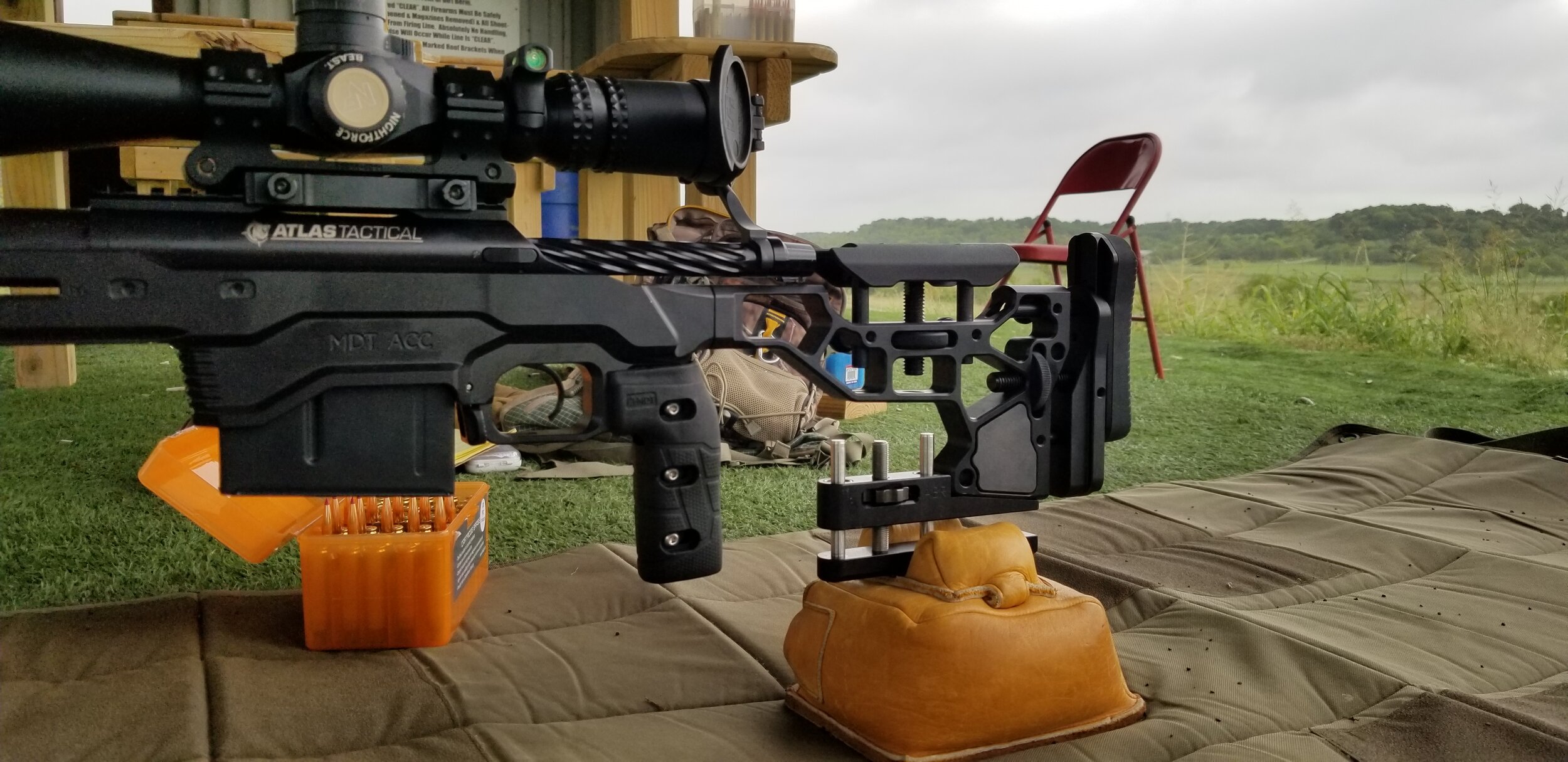

The Angle Mounted Adjustable Bag Rider ABR (adjustbale bag rider) for a MDT precision rifle replaces the need for expensive, heavy, and bulky adjustable front rests and wobbly monopods.

Non-Affiliation Disclaimer. We are not affiliated, associated, authorized, endorsed by, or in any way officially connected with these brands.

Import duty/tax

This product ships directly from the USA saving extra shipping costs and saving time in transit. Varying per individual country this product ships to, the customs department of the country of destination might add import duty/tax (also known as customs duty, tariff, import tax or import tariff). This duty/import tax is outside of the control of SSD.

Additional information

Weight0,7 kg
Dimensions20 × 20 × 20 cm
MDT

ACC Folding Stock Short ELR, ACC Folding Stock Short V, ACC Non-Folding Long ELR, ACC Non-Folding Long V, ESS Folding Stock Short ELR, ESS Folding Stock Short V, ESS Non-Folding Long ELR, ESS Non-Folding Long V, SCS Long ELR, SCS Long V, SCS Lite Long ELR, SCS Lite Long V, SRS Short ELR, SRS Short V, LSS XL Short ELR, LSS XL Short V, Savage B22 Long ELR, Savage B22 Long V

Dowels

Standard dowels, Hard dowels
