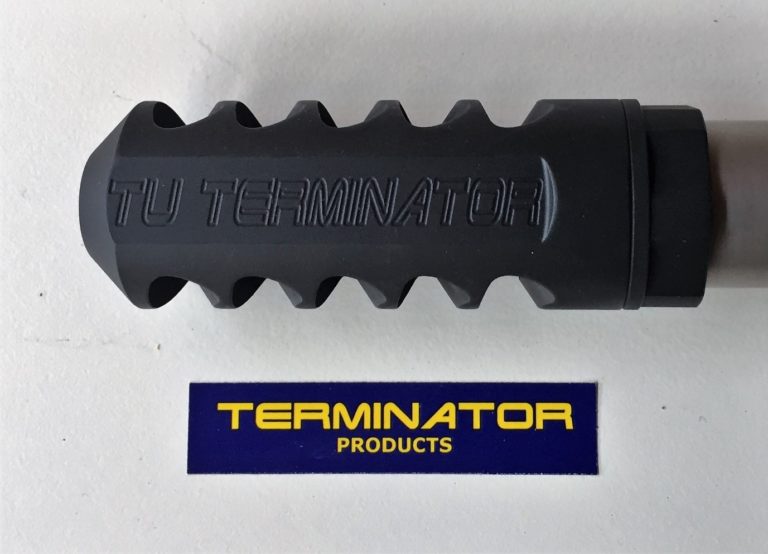

Terminator TU Selftiming Brake

$ 336,67 price excluding tax (VAT)

The TU Terminator muzzle brake is KG Gunkoted Black & opened out as standard to take a maximum calibre size of .308

It is specifically manufactured to fit onto the factory threaded Blaser’s, Bergara’s, Lithgow’s, Tikka’s, Sako’s, Sauer’s & other rifles with M17 & M18 x 1 muzzle threads with a maximum thread shoulder of 22.45mm, 0.884”

TU with nut is 26mm, 1.02” diameter, 74 mm, 2.91” long, 110 grams, 3.88 oz.

It is available in bead blasted Stainless Steel & coated black

Easy DIY fit, no Gunsmithing required, using the locking nut to index it to the barrel.

Ports are 90 degrees to the ground to minimise debris disturbance

The ports are angled back away from the shooter to minimise shooter discomfort and maximise performance.

The standard through hole is for .308 & requires opening up to 0.025-0.030″ over calibre size if fitted to larger calibres.

.A handy tip is to carefully cut up an alloy drink can then put a strip of alloy between the spanner & the brake flats to help protect its finish, lube muzzle threads before installation

If you would like to use some Loctite or similar please put it on the brake only, not the nut.

The TU’s performance falls between the TT & TA Terminator muzzle brakes.

Description

The TU threads are M17 & M18x1 DIY for Tikka, Sako, Bergara, Sauer & many others up to & including .308, maximum muzzle diameter is 22.45mm. The T3AI, TS, TT & TU have an 8.6mm hole for up to .308TU with nut, 26 diameter, 74 long, 105, 110 grams.

Additional information

Weight0.095 kg
Dimensions20 × 20 × 30 cm
